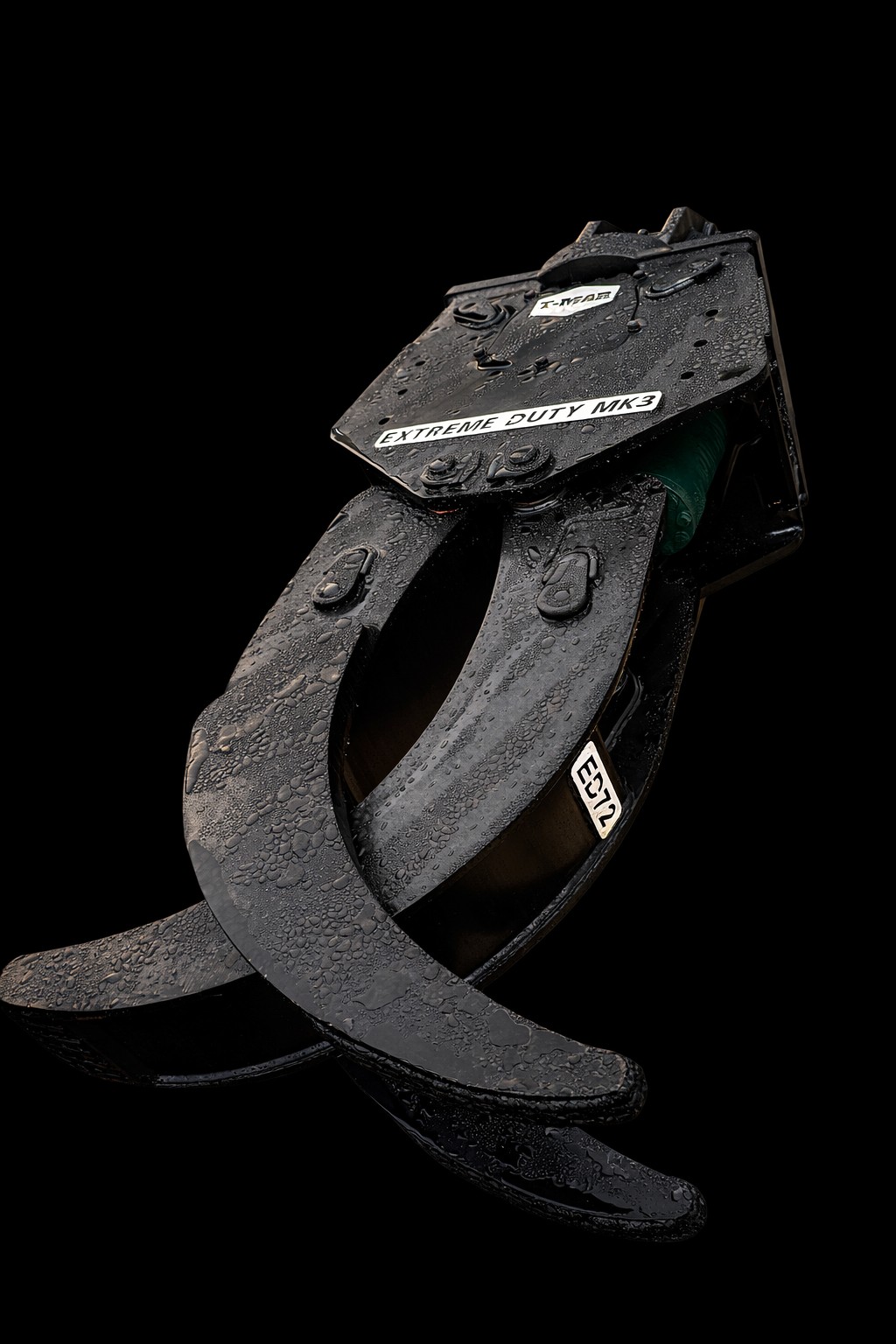

T-MAR Mark III Extreme Duty Grapple – 72 Inch
Maximum capacity. Maximum control. No compromise.
72” Mark III Extreme Duty Grapples Are Engineered for
Very High Volume, Multi-stem Log Handling.
The T-MAR 72” Grapple is the Big Dog in our lineup. It’s large size makes the most out of moving
as many stems as possible in every pass, ensuring high productivity in lighter
timber.
What Sets the MK III Series Apart
-
Reinforced mid-section and leg assemblies with
QT100 Construction
-
Hardened Pins and Aluminum Bronze Bushings
Throughout
-
Extended 125mm High Pressure Cylinders with 25mm
(1”) wall thickness, Oversized Load Holding Counterbalance Valves
-
High Pressure Easy Access Swivel
-
Good Service Access for Protected Hoses and
Components
-
Conventional and Hose Passthrough Link
Compatible
-
Improved Geometry for a Strong Grip
Recommended Heel Length
Solid link: 118 inches
Pass-through link: 123 inches
Heel length selection is critical to performance. Consult T-MAR engineering if your configuration differs.
Best Suited For
High Volume Multi-Stem Forwarding and Loading, Ideal for
moving larger volumes in lighter timber to maximize loader productivity.
Specifications:
Machine Weight: 60,000 lbs. +
Grapple Weight: 3,783 lbs
Rotate Pressure: 1,200–1,300 PSI
Rotate Flow: 8–12 GPM
Rotate Torque: 1,300 ft-lb
Open/Close Pressure: 4,000 PSI
Open/Close Flow: 60–80 GPM
