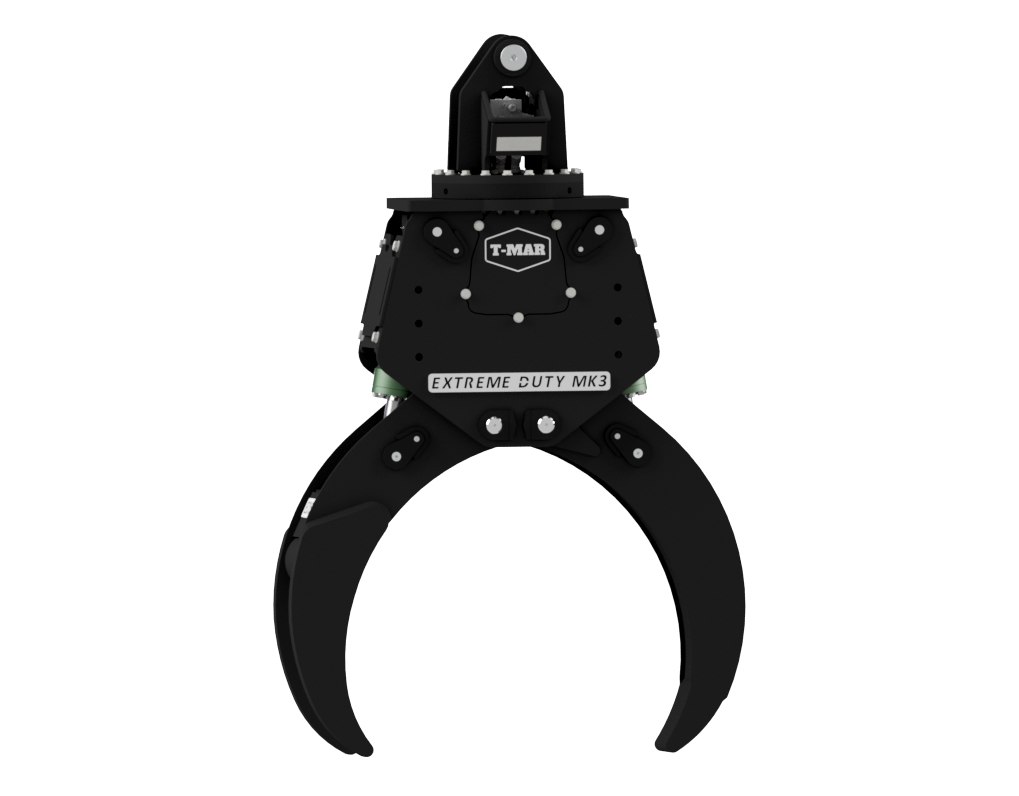

62" Mark III Extreme Duty Grapple
Purpose-built performance for high-production forestry
62” Mark III Extreme Duty Grapples Are Engineered for
Large Timber Handling Where Grip Matters Most. The T-MAR 62” Extreme Duty Grapple pairs 62”
legs with the Mark III frame and hydraulics for maximum holding power in the
biggest, heaviest timber harvesting applications.
What Sets the MK III Series Apart
-
Reinforced mid-section and leg assemblies with
QT100 Construction
-
Hardened Pins and Aluminum Bronze Bushings
Throughout
-
Extended 125mm High Pressure Cylinders with 25mm
(1”) wall thickness, Oversized Load Holding Counterbalance Valves
-
High Pressure Easy Access Swivel
-
Good Service Access for Protected Hoses and
Components
-
Conventional and Hose Passthrough Link Compatible
-
Improved Geometry for a Strong Grip
Recommended Heel Length
Solid link: 108 inches
Pass-through link: 113 inches
Heel length selection is critical to performance. Consult
T-MAR engineering if your configuration differs.
Best Suited For
BC Coastal Timber Harvesting on larger carriers in very large, single stem hoe chucking and loading.
KEY FEATURES
- Extreme duty construction for severe forestry applications
-
- Counterbalance load-holding valves for controlled operation
-
- Optimized geometry for efficient log handling
-
- Replaceable wear components
-
- Designed and manufactured in Canada
Specifications:
Machine Weight: 60,000 lbs. +
Grapple Weight: 3,240
Rotate Pressure: 1,200–1,300 PSI
Rotate Flow: 8–12 GPM
Rotate Torque: 1,300 ft-lb
Open/Close Pressure: 4,000 PSI
Open/Close Flow: 60–80 GPM
